PC gear reducer,PC Helical Gearbox,reducer motor,combination gearbox
PC gear reducer is a type of single stage of helical gearbox.The most usage is to add the torque in the combination gearbox and the ratio is simplex.

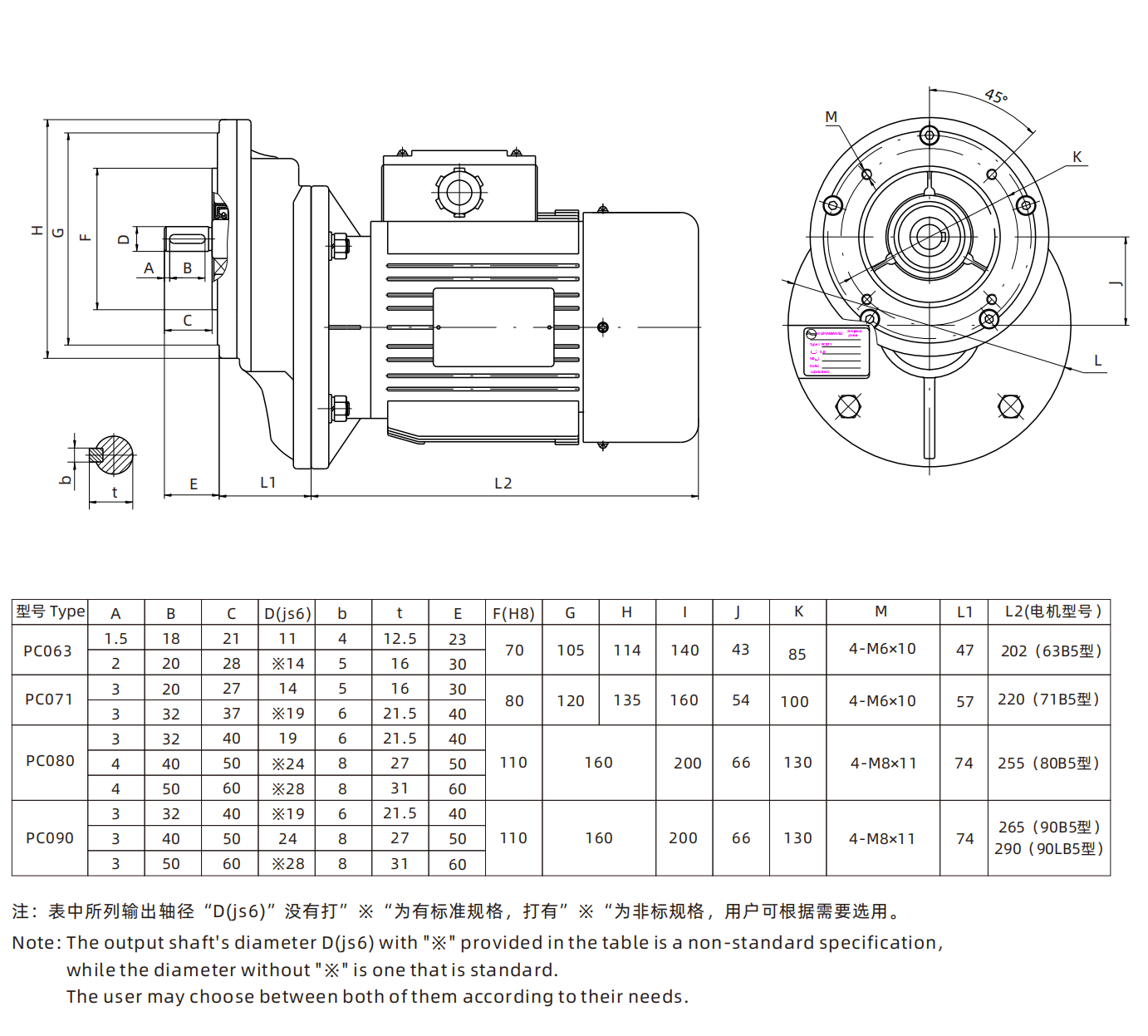

PC series gear reducer is a single-stage gear reducer which adopting modularized structural design.
(i.e. the ratio of PC063 single-stage gear reducer is i=3.0; the ratio of PC071 single-stage
gear reducer is i=3.0; the ratio of PC080 single-stage gear reducer is i=3.0; the ratio of PC090 single-stage gear reducer is i=2.42.
It is convenient to be connected with WMRV and motor, as to achieve the required speed ratio.
It fits the pre-stage helical module on the main reduction unit which is easily done as for any motor of type B14.
