MB MBN Speed Variator

Planetary cone-disk variator is designed with the advanced know-how of both at hoe and abroad and can be used for both light-industrial traded, such as food, pharmaceutical, plastic, paper-making, ceramic, tobacco,printing etc., and heavy-industrial trades, such as tool machine, petro chemistry, metallurgy, metallurgy etc., as well as for the trades of communication and transportation.

1)High strength of variable gearbox: when reversely running with an impact load, it is reliable and able to precisely drive, without a recoil and with sufficient strength.

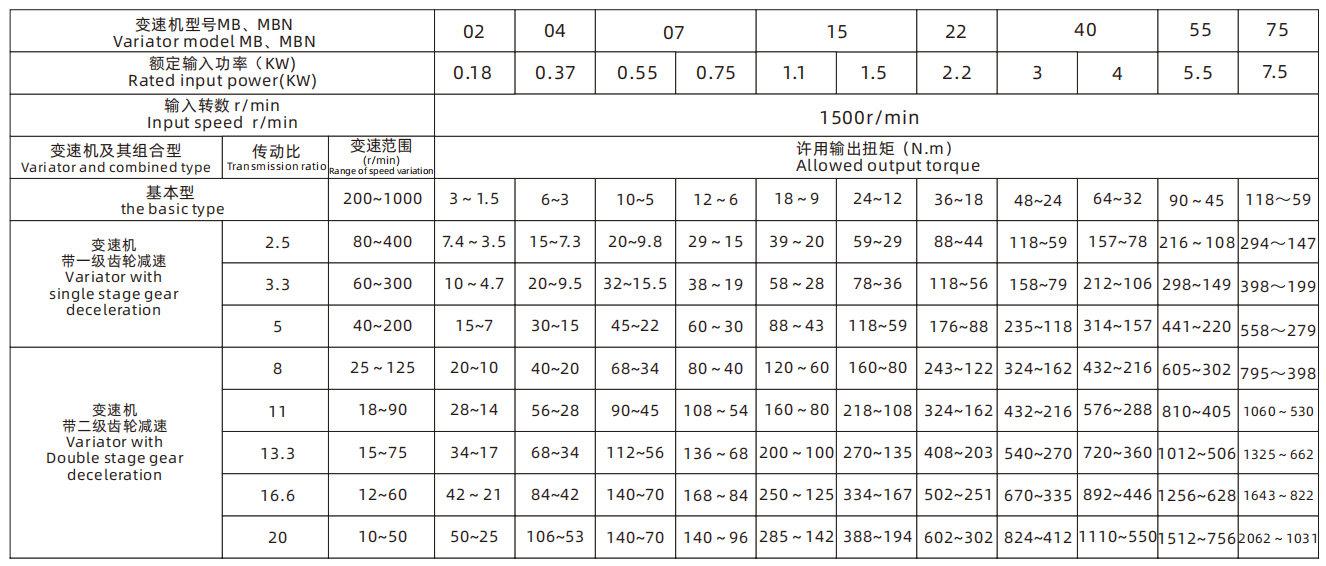

2)Large range of variable speed transmission: the range of speed variation is 5 (i.e. its speed ratio can be varied between 1：1.45 and 1：7.25).

3)High precision of variable speed adjustment: the precision of speed adjustment is 0.5 to 1 turn.

4)Stable performance: the driving parts are all processed with special heat treatment, precision machining, resulting in good touch and lubrication, stable running, low noise and long life.

5)Compact structure, small volume and light weight.

6)Strong combination capability:it has a good capability to be combined with various reducers to realize low-speed stepless variation.

7)The output torque and power change when the output speed varies. It has a mechanical feature of changing output torque and power.
