The Principle and Characteristics of Worm Gear Drives

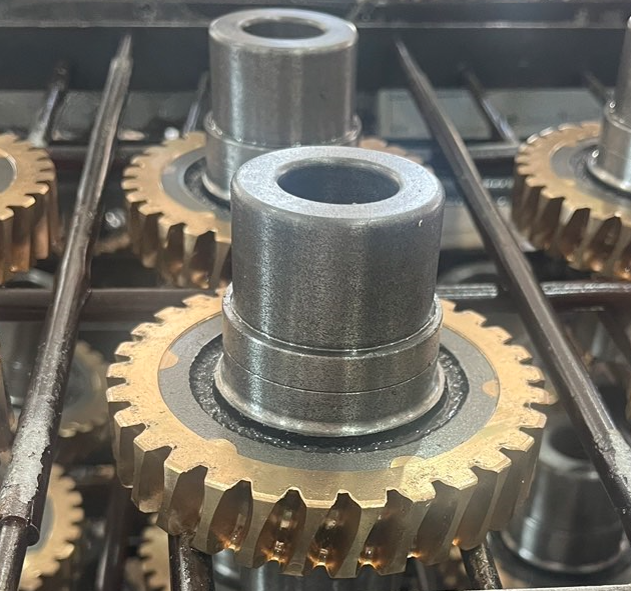

As one of the core products of Zhejiang Wuma Drive Co., Ltd., worm gear drives play a vital role in various industrial transmission systems. Worm gears are commonly used components in mechanical transmissions. Their working principle is based on the meshing of the worm gear and the worm wheel. The worm wheel has helical teeth, and the worm is a helical columnar object. When they mesh, the helical shape of the worm converts the motion of the worm wheel into helical motion, efficiently transmitting motion and torque between two spatially intersecting shafts.

When the worm rotates, it drives the teeth of the worm wheel to slide from one position to another, thereby driving the worm wheel to rotate. This type of worm gear drive has the following significant characteristics:

• Large transmission ratio, compact structure, achieving efficient transmission within a limited space;
• Line contact of the meshing tooth surfaces, with a load-bearing capacity far exceeding that of general intersecting shaft helical gear mechanisms;
• Smooth transmission, low noise, suitable for precision transmission applications;
• Self-locking function, typically only the worm can drive the worm wheel, reverse transmission is blocked, ensuring high safety.

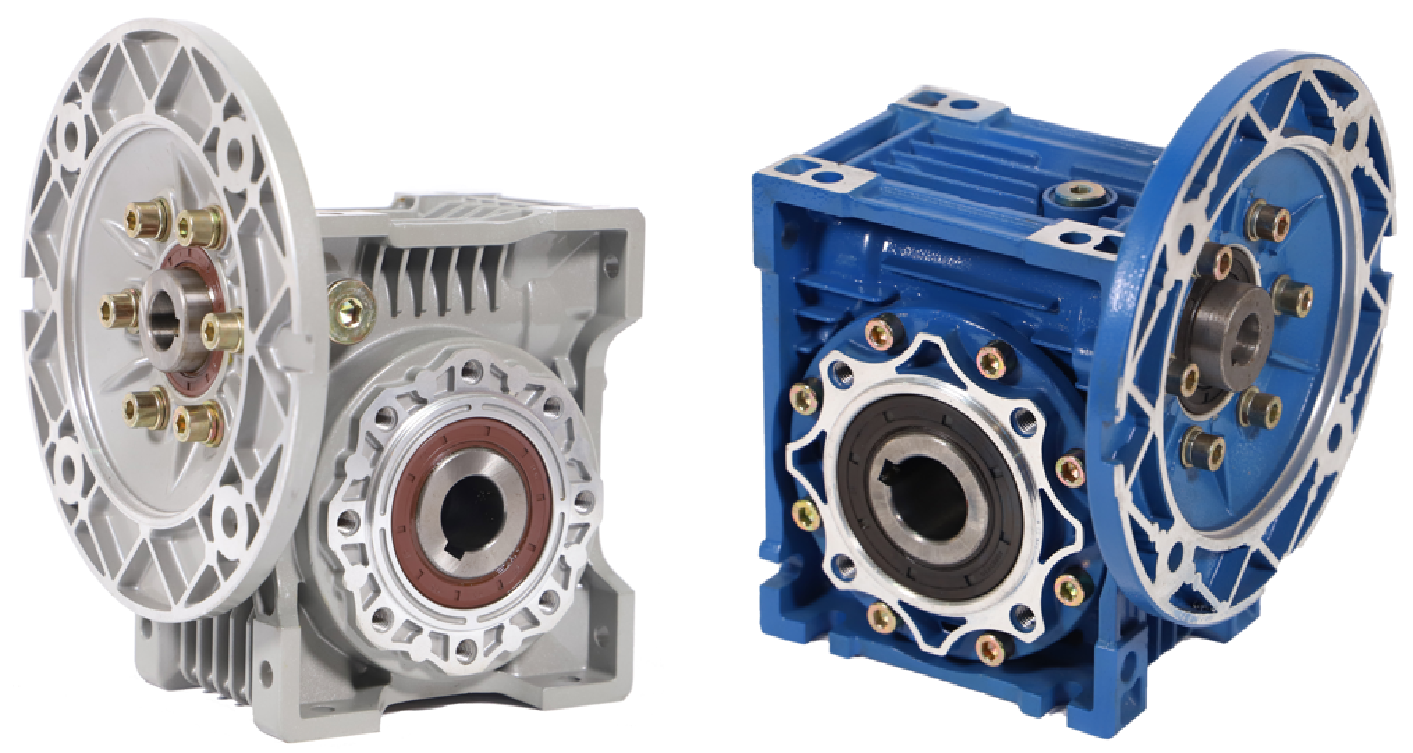

Common worm gear reducers utilize a worm gear structure internally, and their housings are typically made of aluminum alloy or cast iron, making them durable and easy to maintain. Zhejiang Wuma Drive Co., Ltd. specializes in the research and development and manufacturing of various reducers, gearboxes, and worm gear transmission devices. Our products cover a wide range of types, including worm gearbox, planetary gearbox, which are widely used in motor drives, industrial automation, and other fields.

We are committed to providing customers with stable, reliable, efficient, and energy-saving transmission solutions. Welcome to learn more about our worm gear transmission product.
