Machine tool and automation equipment industry

Gear reducers are core precision transmission components in machine tools and automated equipment. They convert high-speed motor operation into low-speed, high-torque output while ensuring micron-level positioning accuracy and operational rigidity. They are crucial for achieving high machining accuracy in machine tools and efficient collaboration in automated production lines.

I. Core Application Scenarios and Compatible Machine Types

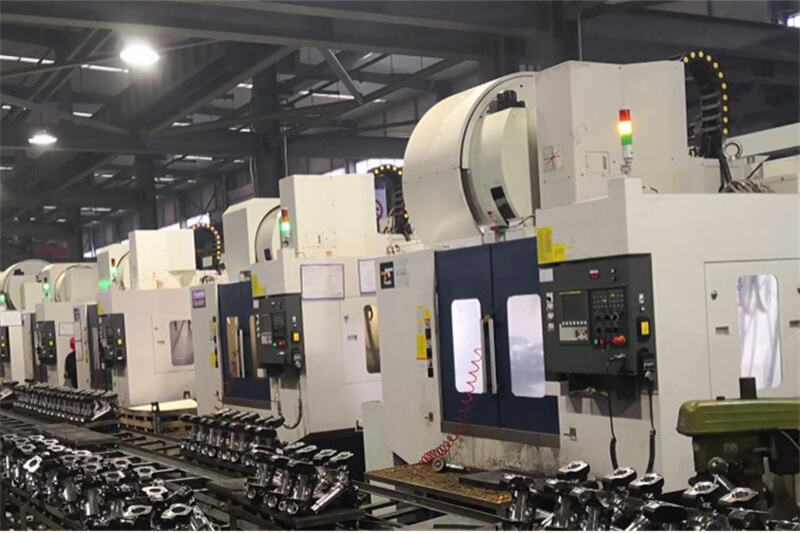

Metal Cutting Machine Tools (Lathes, Milling Machines, Machining Centers, Grinding Machines)

Requirements: High-precision positioning, high rigidity and impact resistance, low backlash to ensure the stability of tool feed and spindle drive, avoiding machining errors.

Compatible Machine Types: High-precision servo planetary gear reducers (backlash ≤ 3 arc minutes, used with servo motors for precise control of feed axis displacement, enabling machining of complex parts); hardened gear reducers (suitable for low-speed, heavy-load spindle operation, high transmission efficiency, wear-resistant).

Machine Tool Auxiliary Equipment (CNC Rotary Tables, Tool Magazines, Feeders)

Requirements: Rapid indexing, precise tool changing, continuous feeding, fast response and zero positioning deviation.

Compatible Models: Harmonic reducers (small size, high transmission precision, driving CNC rotary tables with 360° precise indexing); Miniature planetary reducers (compatible with tool changer mechanisms, enabling rapid tool switching and positioning).

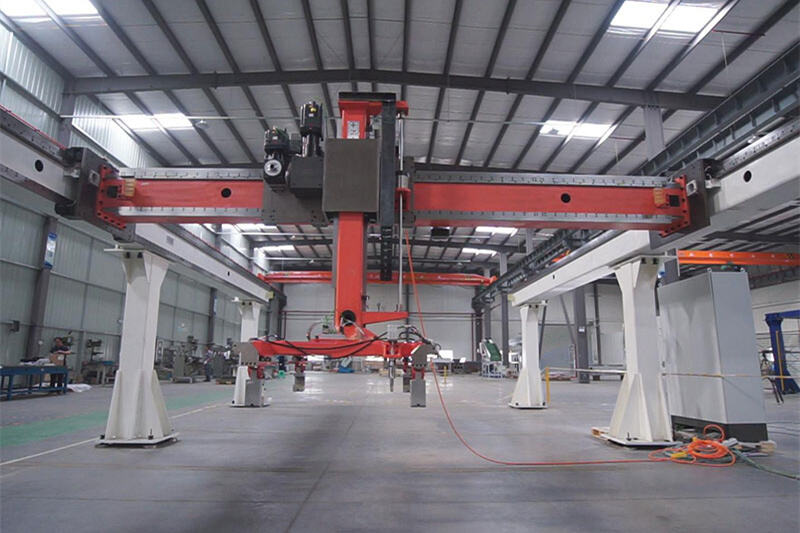

Automated Production Line Equipment (Industrial Robots, Gantry Robots, Assembly Line Workstations)
Requirements: Multi-joint coordinated motion, high repeatability, resistance to load impact, suitable for 24-hour continuous operation.

Compatible Models: Precision planetary reducers (driving robot joints, ensuring end effector repeatability of ±0.02mm); Gear reducer motors (integrated design, compatible with gantry robot loading and unloading actions, easy installation, flexible speed adjustment).

Specialized Automated Equipment (CNC Bending Machines, Laser Cutting Machines, Welding Robots)
Requirements: High torque output, fast dynamic response, meeting the precise motion control needs of bending, cutting, welding, and other processes.

Compatible Models: Heavy-duty planetary reducers (matching bending machine slide drives, capable of withstanding instantaneous high-pressure loads); right-angle planetary reducers (saving installation space, suitable for the multi-dimensional motion of laser cutting machine cutting heads).

II. Core Value

Improved Machining Accuracy: Low backlash and high rigidity transmission characteristics ensure micron-level positioning of machine tool feed axes and automated equipment actuators, reducing part machining errors and production line deviations.

Enhanced Operational Stability: Impact-resistant and wear-resistant design suitable for high-frequency start-stop conditions in machine tool cutting and automated production lines, reducing equipment vibration and extending the service life of tools and equipment.

Increased Production Efficiency: High compatibility with servo and frequency conversion systems supports rapid speed adjustment and precise linkage of equipment, shortening machining cycle time and improving the efficiency of automated production line collaboration.

Suitable for Complex Working Conditions: Compact structural design meets the needs of machine tools and automated equipment in confined installation spaces, while possessing excellent heat dissipation performance, suitable for long-term continuous operation.

III. Selection Guidelines
For high-precision machining applications (such as machining centers and robot joints), prioritize precision planetary gearboxes or harmonic gearboxes with backlash ≤ 3 arc minutes; for heavy-duty cutting applications, select hardened gear reducers.

Pay attention to the gearbox's rigidity; machine tool cutting equipment requires high-rigidity models to avoid transmission deformation caused by cutting forces.

When selecting equipment for automated production lines, match the motor interface specifications and prioritize integrated geared motors to simplify installation and commissioning.

Allow a 25%-30% torque margin to handle instantaneous impact loads during machine tool cutting and equipment start-up and shutdown.
