Gearboxes and Servo Motors in Use

In industrial automation, the perfect combination of servo motors and gearboxes is key to achieving high-precision motion control. However, in actual selection and integration, engineers often face a thorny problem: servo motors come in many brands with varying output interface standards (e.g., square flanges, round flanges, keyway shafts, etc.), while traditional gearbox manuals often only provide the universal IEC standard flange dimensions.

This means that when you select a motor with a non-IEC standard interface, you must repeatedly consult motor drawings to verify critical dimensions such as mounting hole positions, shaft diameters, and keyways. This process is tedious and prone to errors, severely impacting equipment design and assembly efficiency.

To completely solve this industry pain point, we have made a significant upgrade!

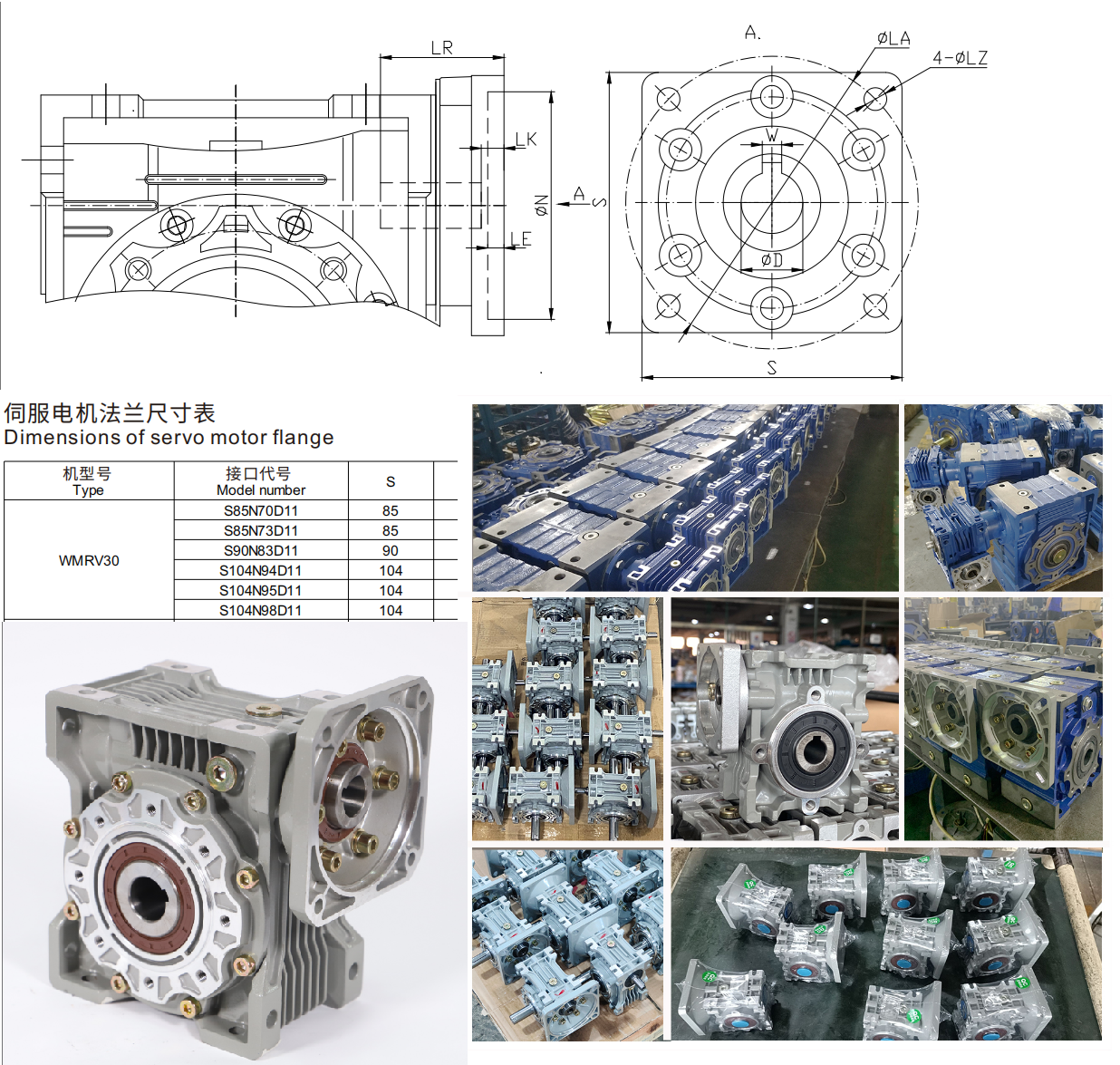

We have added a detailed "Input Square Flange Dimension Comparison Table" to our full range of RV, R, K, F, S, and WKM gearbox product catalogs. This table clearly maps complex, non-standard motor interface information to our gearbox input dimensions.

The core value of this upgrade: Clear Selection: No need to cross-reference multiple drawings. Simply search for the corresponding reducer model in the catalog to quickly obtain all the key dimensions of the matching square flange interface, including bolt hole pitch circle diameter, hole diameter, distribution, shaft extension dimensions, etc.

100% Matching Accuracy: Dimensional data is directly derived from our extensive experience in matching components and our technical database, ensuring precise matching with the square flange interfaces of mainstream servo motor brands, eliminating assembly failures caused by dimensional errors from the outset.

Saving Valuable Time: What might have taken hours of verification is reduced to minutes of browsing, greatly accelerating equipment development and procurement processes.

Reduced Integration Risks: Clear dimensional data reduces communication costs and the possibility of human error, making mechanical design more reliable and equipment installation smoother.

We believe that truly excellent products lie not only in their core performance but also in the meticulous attention to user experience in these details. This catalog upgrade is another solid step in our commitment to providing customers with "one-stop, worry-free" transmission solutions.
